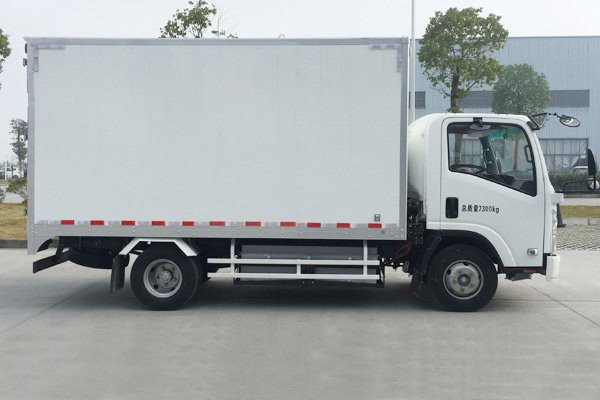

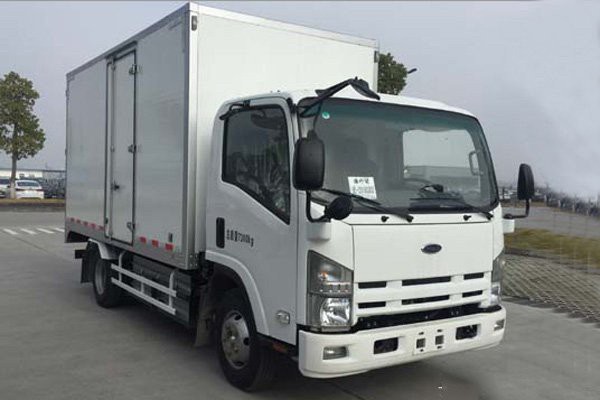

ISUZU EV600 Electric Truck
Max Driving Speed 100km/hour
Distance per Charge 245km
Vehicle weight 3.346 ton
Power Density 130.33Wh/kg
 |
 |
 |
 |
Description
ISUZU EV600 Electric Truck
|
General: |
|
|
GVW |
8 Ton |
|
Wheelbase |
3360mm |
|
Vehicle weight |
3.346 ton |
|
Max Driving Speed |
100km/hour |
|
Distance per Charge |
245km |
|
Length |
5.995m |
|
Width |
2.35m |
|
Height |
3.11m |
|
Battery: |
|
|
Model |
GXB2-G7A-6P42S |
|
Make |
Gotion |
|
Type |
LiFePO4 |
|
Capacity |
96.77kW/h |
|
Power Density |
130.33Wh/kg |
|
Motors: |
|
|
Model |
YTD060W23 |
|
Make |
BROAD-OCEAN |
|
Type |
PMSM |
|
Power |
60kW |
|
Max. Power |
110kW |
|
Max. Torque |
1000N.m |
|

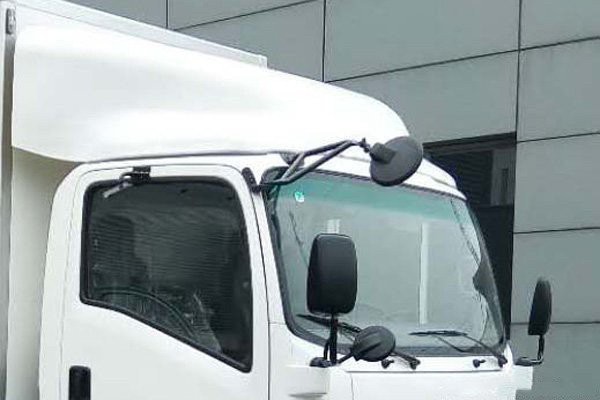

Cab |
|
|
Model |
600P |
|
Make |
ISUZU |
|
Structure |
Full Steel, tillable |
|
Type |
Day Cab |
|
Seats No. |
3 no.(2 Passenger+ 1 driver) |
|
Axle |
|
|
Front axle rating |
2580kg |
|
Rear axle rating |
4720kg |
|
Brake |
ABS |
|
Tire |
7.00R16 8PR, 6 no. |
