Vehicle weight: 2.95 tons
Wheelbase: 3,360 millimeters
Maximum driving speed: 100 kilometers per hour
Distance per charge: 435 kilometers
 |
 |
 |
 |
Description
BRIEF

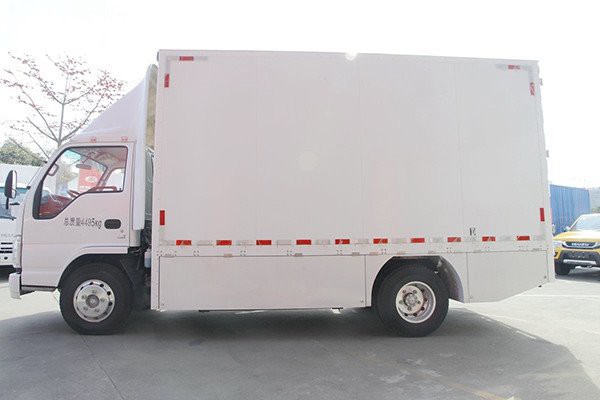

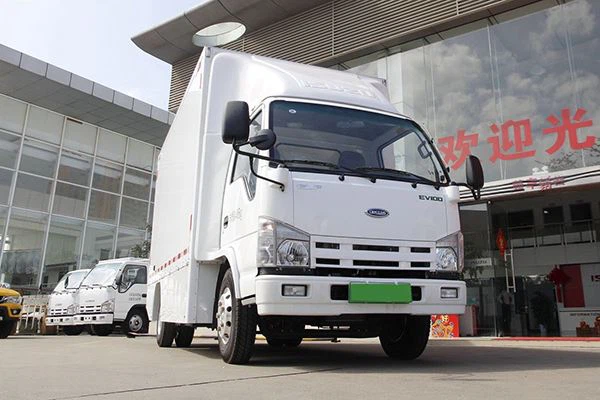

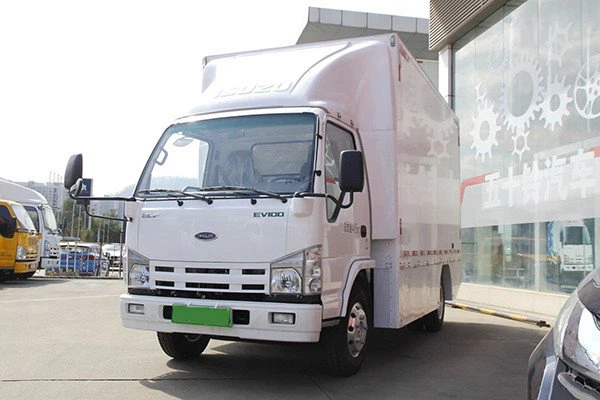

The ISUZU EV100 electric truck, manufactured by CSCTRUCK, represents a pioneering stride in the realm of sustainable transportation. With a maximum driving speed of 100km/h, it seamlessly integrates high performance with eco-conscious design. At its core lies the formidable CB220 battery model, boasting a substantial 106.95kw/Wh battery capacity, ensuring extended operational durations on a single charge. Moreover, its impressive power density of 153.84Wh/kg underscores its efficiency and reliability.
The propulsion system is anchored by the YTD060W23 motor model, delivering a potent 60kW of power with a peak capacity of 110kW. Such robust propulsion capability ensures smooth and swift operation across diverse terrains and driving conditions. Additionally, the truck achieves remarkable torque with a maximum of 1000N.m, enabling it to tackle heavy loads and steep inclines with ease.
|
General |
|
|
GVW |
5 Ton |
|
Wheelbase |
3,360mm |
|
Vehicle weight |
2.95ton |
|
Max Driving Speed |
100km/hour |
|
Distance per Charge |
435km |
|
Length |
5.995m |
|
Width |
2.1m |
|
Height |
3.1m |
|
Battery |
|
|
Model |
CB220 |
|
Make |
CATL |
|
Type |
LiFePO4 |
|
Capacity |
106.95kW/Wh |
|
Power Density |
153.84Wh/kg |
|
Motors |
|
|
Model |
YTD060W23 |
|
Make |
BROAD-OCEAN |
|
Type |
PMSM |
|
Power |
60kW |
|
Max. Power |
110kW |
|
Max. Torque |
1,000N.m |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
