5.8m Max Working Reach
200kg Max Platform Capacity
13m Max Working Height

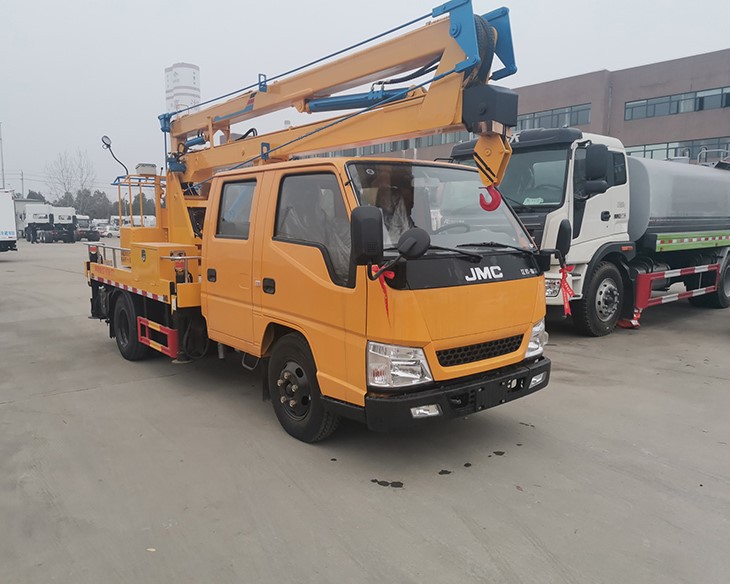

JMC Shunda 4X2 Truck Chassis
JMC JX4D30B6H 116hp Diesel Engine
JMC 5MTI280Y 5 Speed Manual Transmission

BRIEF

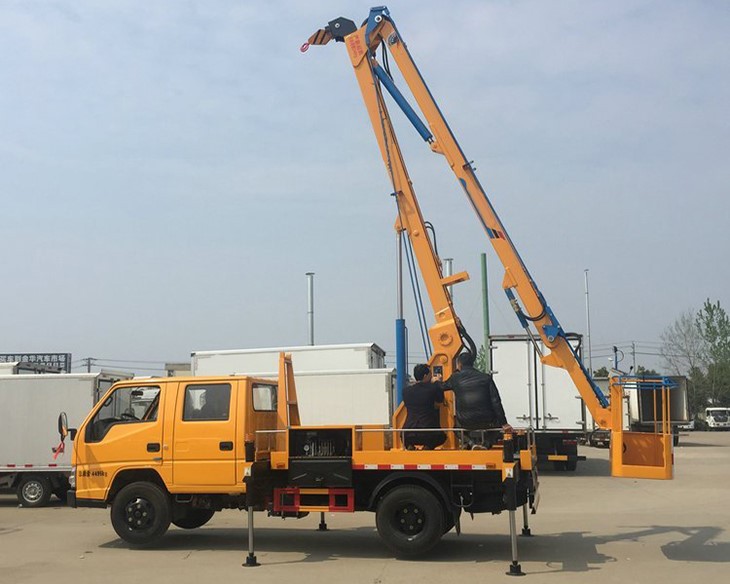

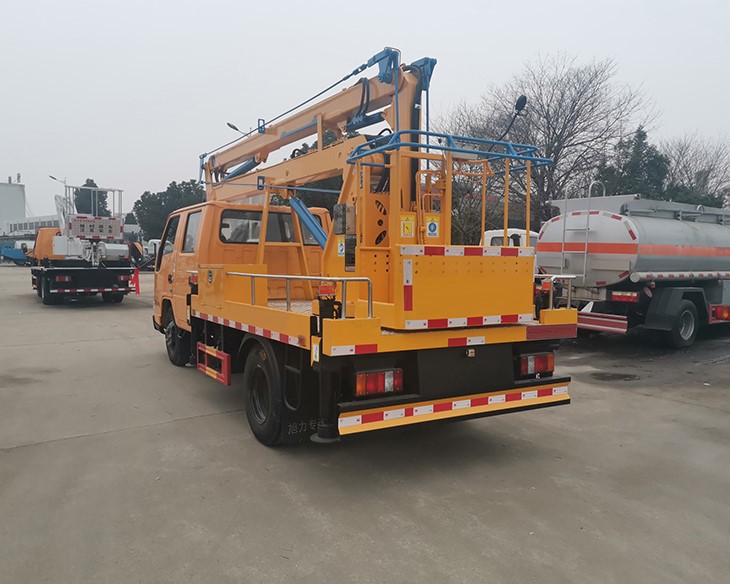

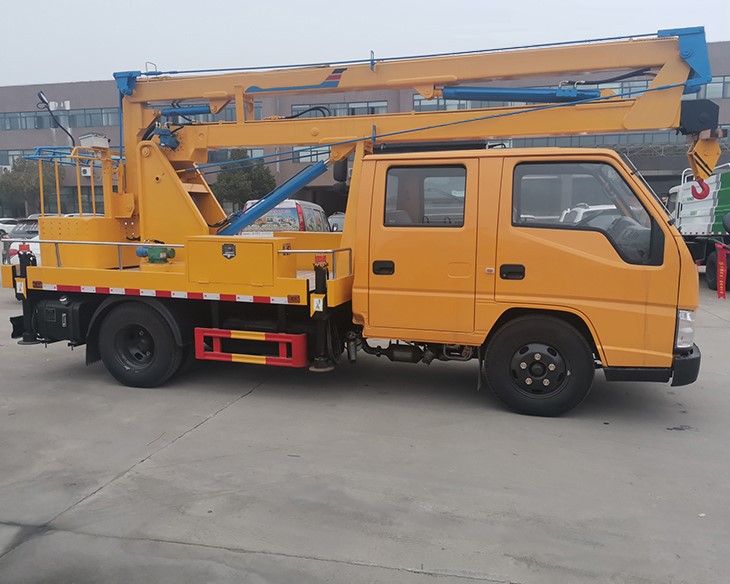

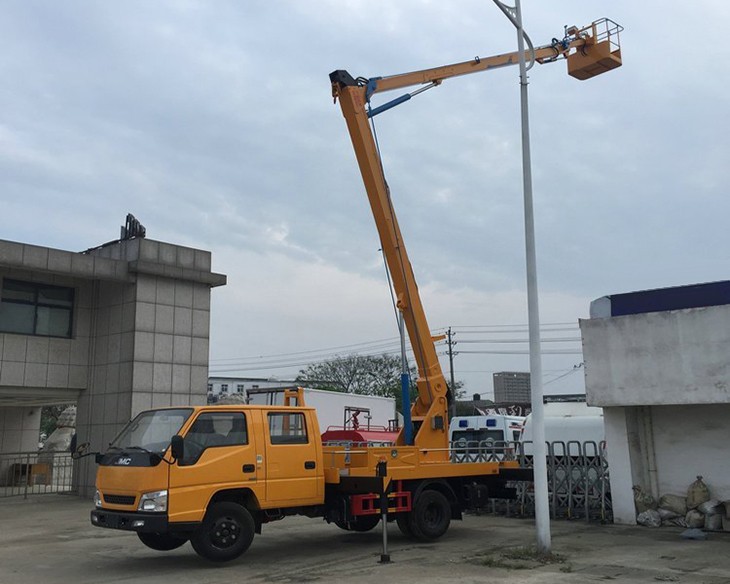

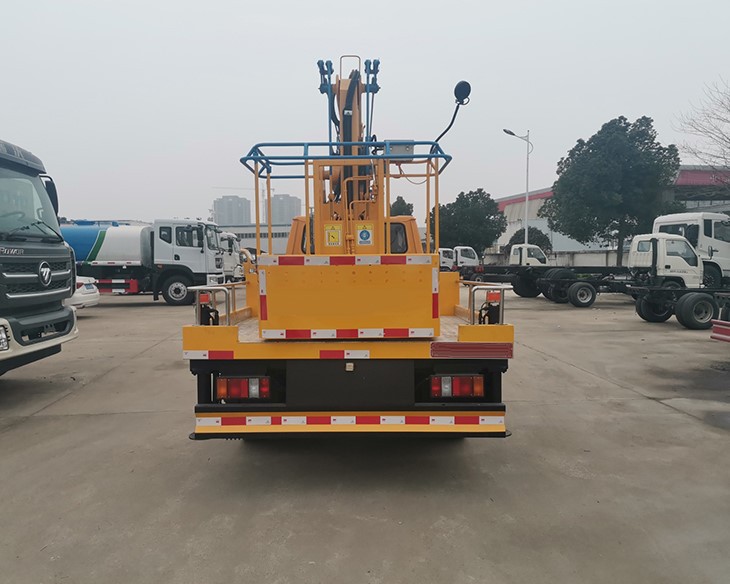

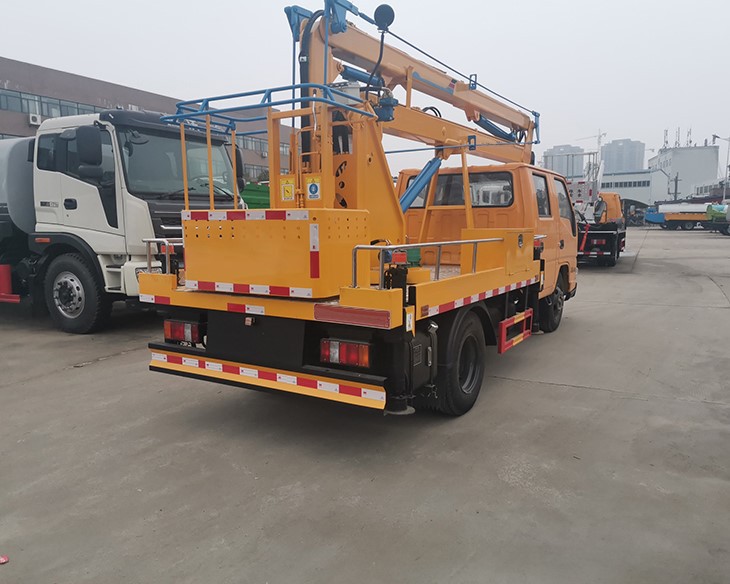

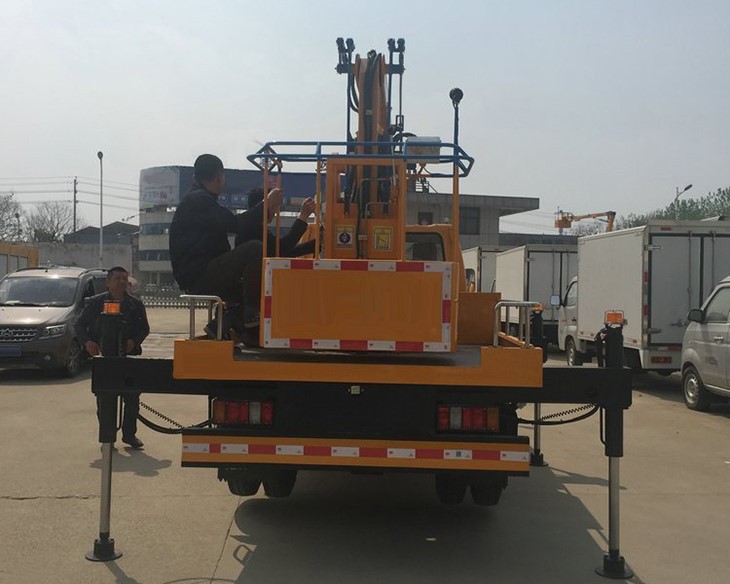

Articulated Bucket Trucks have proven to be incredibly versatile in a range of industries including electric utilities, construction, telecommunications, lighting, and sign installation. CSC Trucks strives to continue innovating in both engineering and manufacturing, delivering the highest quality, safest, and most reliable bucket trucks to meet our customers’ needs. Our 13m articulated boom aerial bucket truck is an example of this innovation, boasting a smooth boom operation, high-strength steel structure, advanced safety features, high efficiency, and reliability. Mounted on a lightweight truck chassis, this model provides optimal mobility.

FEATURES

Standard features:

• Adjustable slewing mechanism.
• Manually pulling-cable engine throttle.
• The throttle valve enables step-less speed regulation.
• Combination of manual and electric operation methods.
• Electric two-position operation from turntable and platform.
• The turntable uses an advanced worm gear reduction mechanism.
• Outriggers can be manually operated simultaneously or separately with an interlocking device for getting on and off the car.
• Φ20 stainless steel tube fence.
• Cab side up and down steps.
• 3mm anti-skid tread plate floor.
• Plastic hand washing water tank.
• Wheel covers by injection mold molding.
• Two yellow strobe lights for the rear outrigger.
• Four outriggers with two-way hydraulic locks.
• High-quality carbon steel side and rear protection.
• Carbon steel toolbox with stainless steel door lock.

Optional features:

• Well-known brand paint.
• Clear and eye-catching logos and signage.
